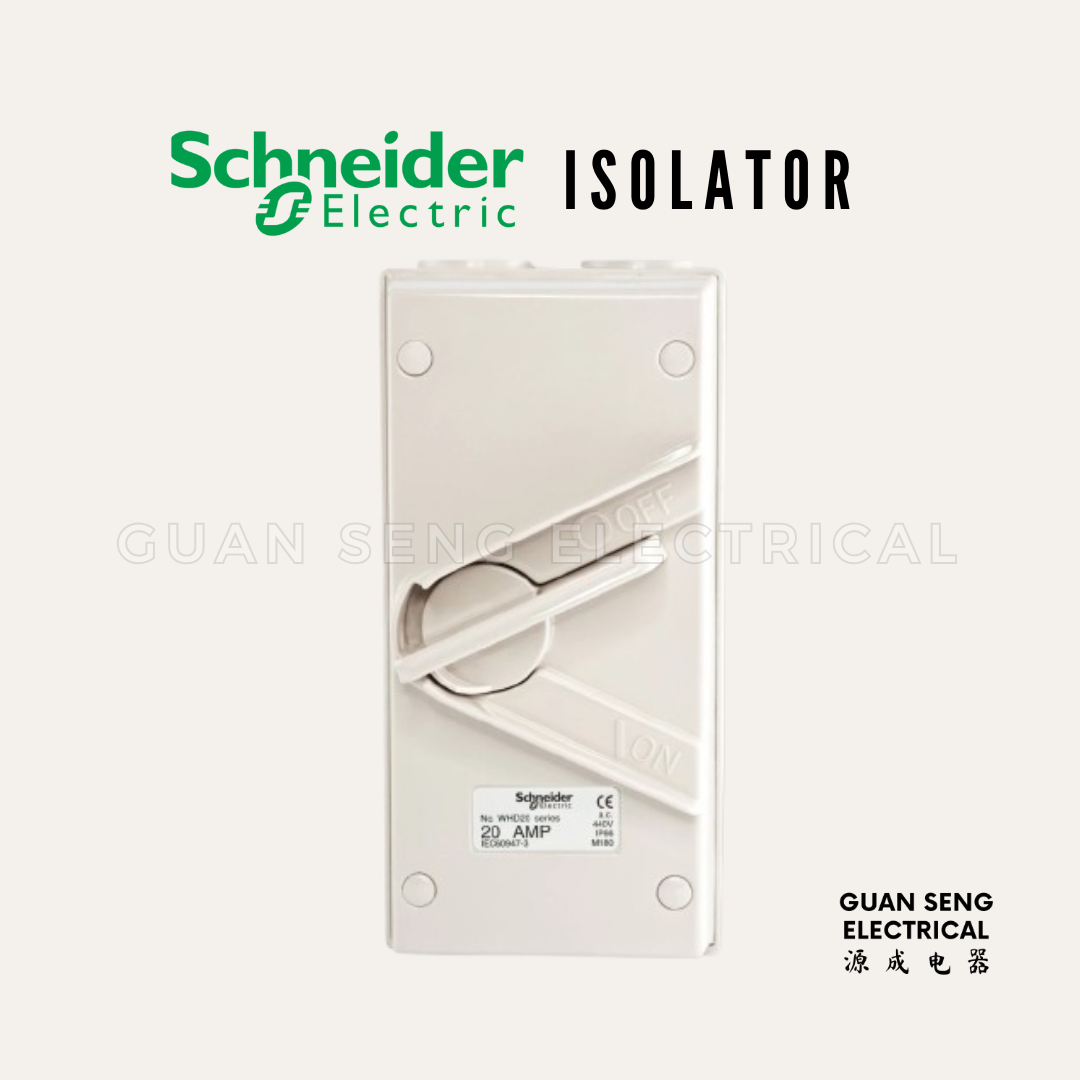

Schneider Kavacha 20A 440V Weatherpoof Double Pole Isolator Switch IP66

Schneider Kavacha 20A 440V Weatherpoof Double Pole Isolator Switch IP66

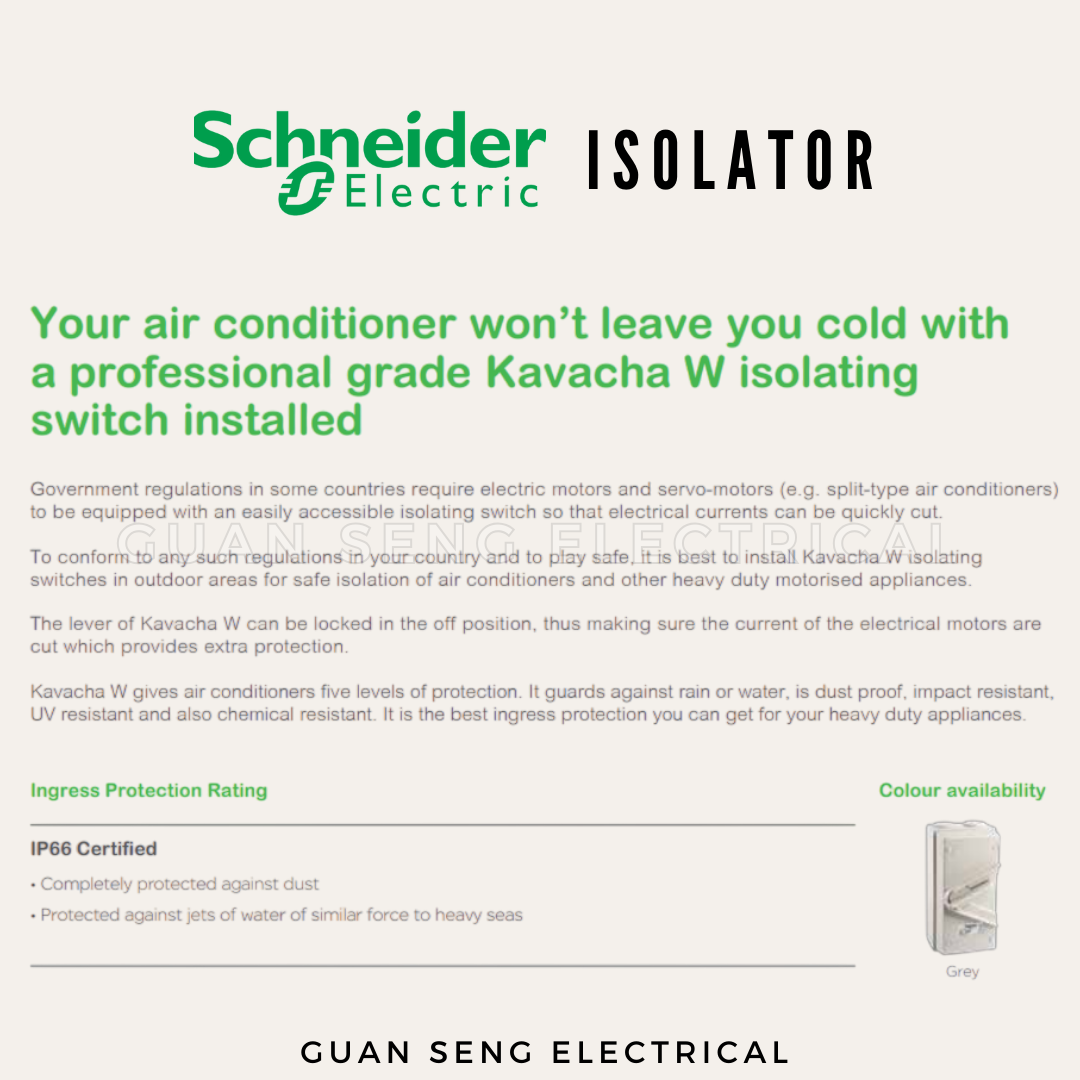

Government regulations in some countries require electric motors and servo-motors (e.g. split-type air conditioners) to be equipped with and easily accessible isolating switch so that electrical currents can be quickly cut. To conform to any such regulations in your country and to play it safe, it is best to install Kavacha W isolating switches in outdoor areas for safe isolation of air conditioners and other heavy duty motorized appliances.

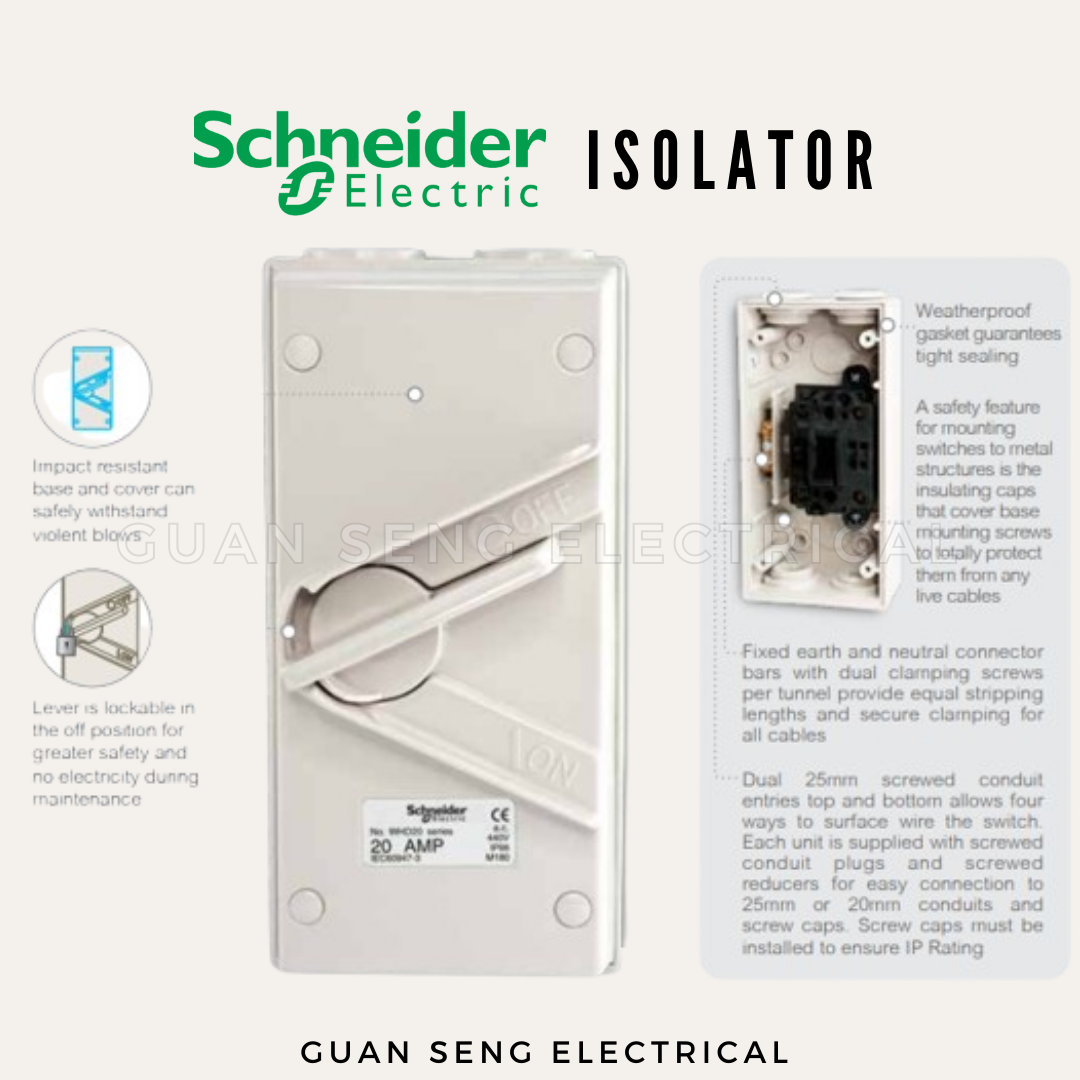

The lever of Kavacha W can be locked in the off position, thus making sure the current of the electrical motors are cut which provides extra protection. Kavacha W gives air conditioners five level of protection. It guards against rain or water, is dust proof, impact resistant, UV resistant and also chemical resistant. It is the best ingress protection you can get for your heavy duty appliances.

PRODUCT FEATURES

• Model: WHD20_GY

• Range: Kavacha

• Type: Isolating Switch

• [Ie] Rated operational current: 20 A at 440 V AC-22A

• Poles: 2P

• Motor Rating: M180

• IP degree of protection: IP66

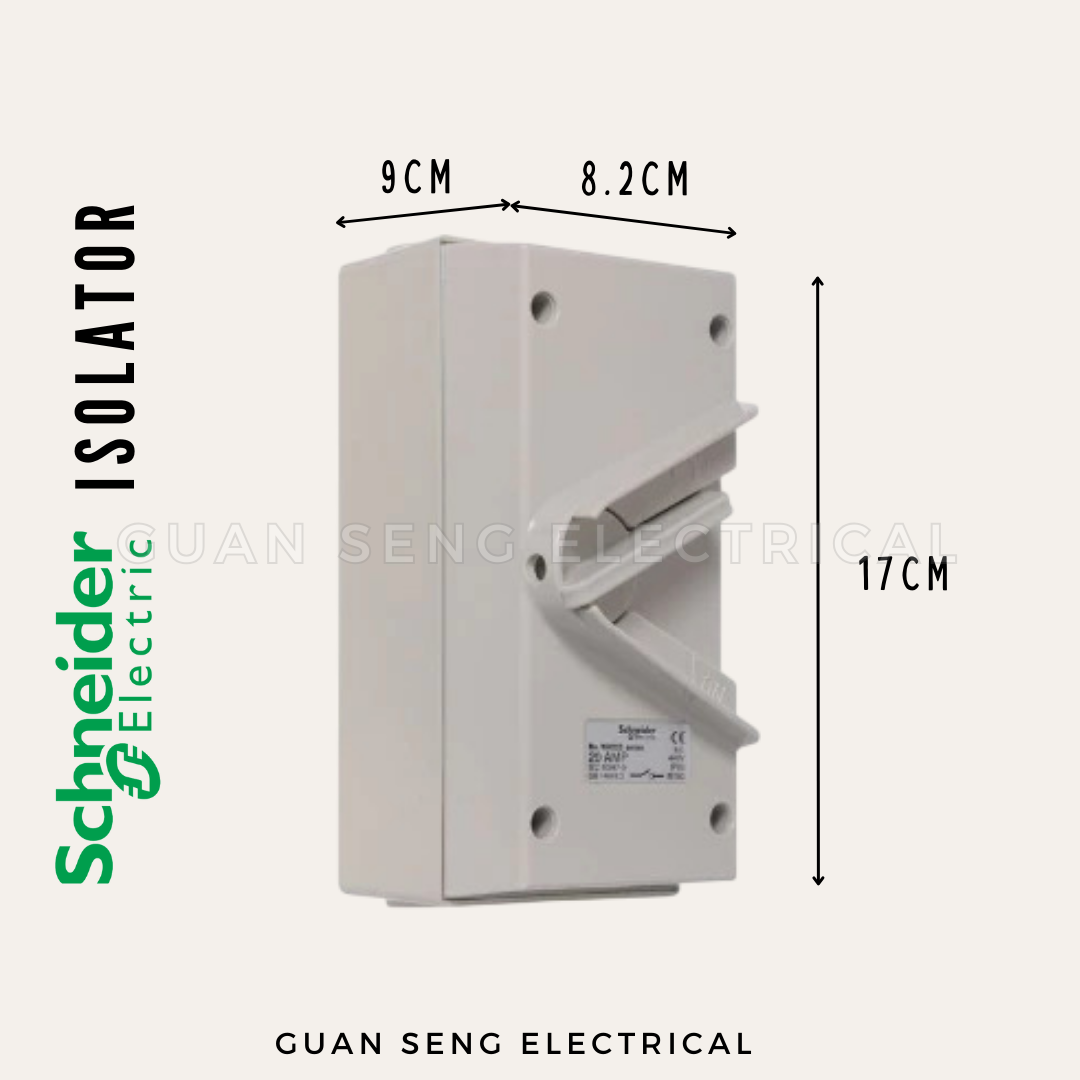

• Width: 82mm

• Height: 170mm

• Depth: 90mm
