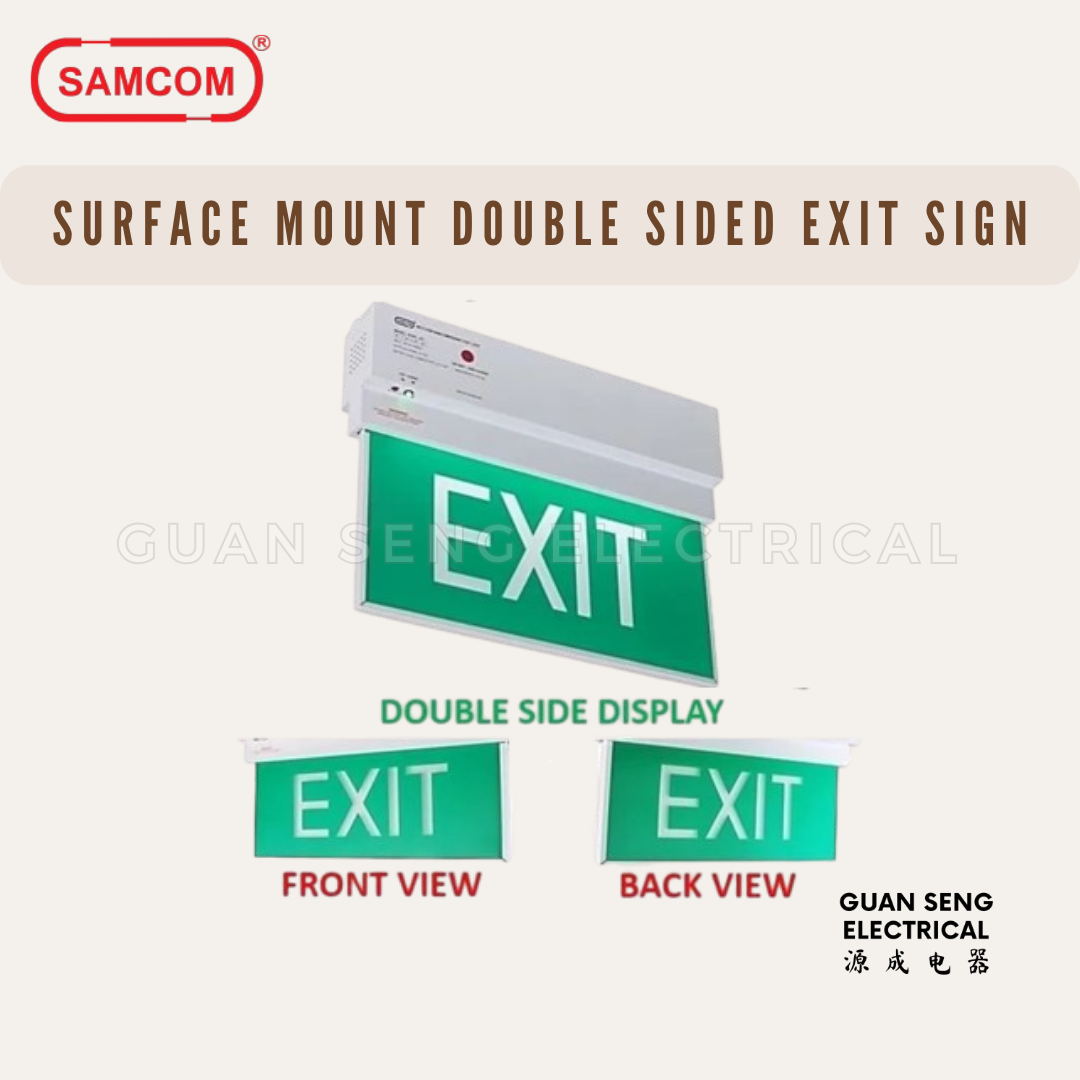

Samcom Electronics Surface Mount Led Slim Exit Sign SLED-X2 (Double Sided)

Samcom Electronics Surface Mount Led Slim Exit Sign (Double Sided)

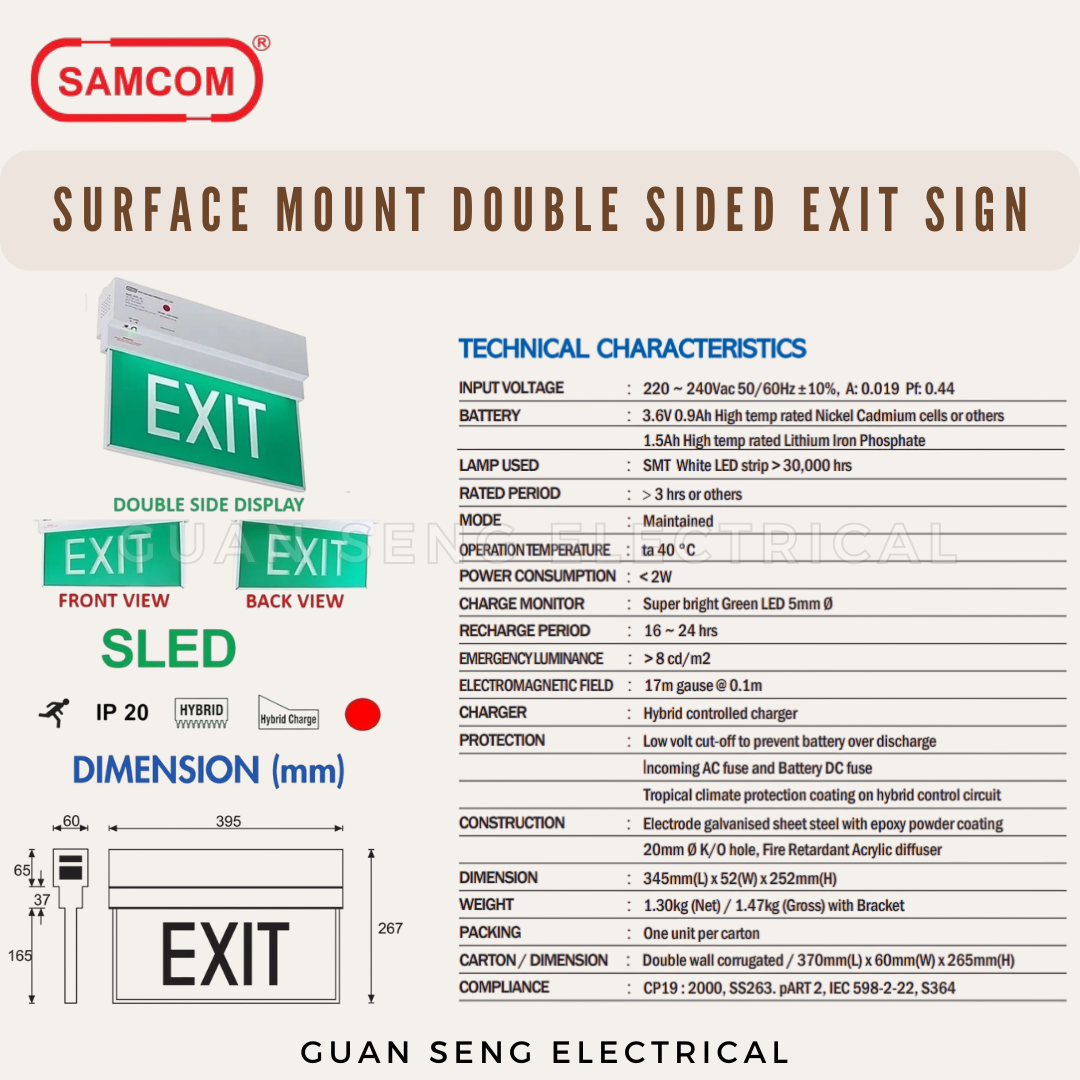

PRODUCT PROPERTY

• Current Input Voltage: 220~240Vac 50/60Hz ±10%, A: 0.019 Pf: 0.44

• Battery Type:

- 3.6V 0.9Ah High temp rated Nickel Cadmium cells or others

- 1.5Ah High temp rated Lithium Iron Phosphate

• Lamp (Brightness): SMT White LED strip > 30,000 hrs

• Rated Duration Period: > 3 hrs or others

• Function Mode: Maintained

• Operation Temperature: ta 40 °C

• Power Consumption: < 2W

• Monitoring Signal: Super bright Green LED 5mm Ø x 1unit.

• Minimum Recharging Period: 16 ~ 24 hrs

• Emergency Luminance : > 8 cd/m2

• Electromagnetic Field: 17m gause @ 0.1m

• Charger Device : Hybrid technology controlled.

• Protection:

- Low power volt cut-off to prevent battery over discharge.

- Built-in Input AC fuse and Battery DC fuse prevert short circuit.

- Tropical climate protection with powder coating hybrid controlled.

• Construction Combined Material

- Electrode galvanised sheet steel with epoxy powder coating.

- 20mm Ø K/O hole, Fire Retardant Acrylic diffuser

• Unit Dimension: 345mm(L) x 52(W) x 252mm(H)

• Weight: 1.30kg (Net) / 1.47kg (Gross) with Bracket

• Packing / Carton and Dimension: One unit per carton. Double wall corrugated 370mm(L) x 60mm(W) x 265mm(H)

• Compliance: CP19 : 2000, SS263. Part 2, IEC 598-2-22, S364
