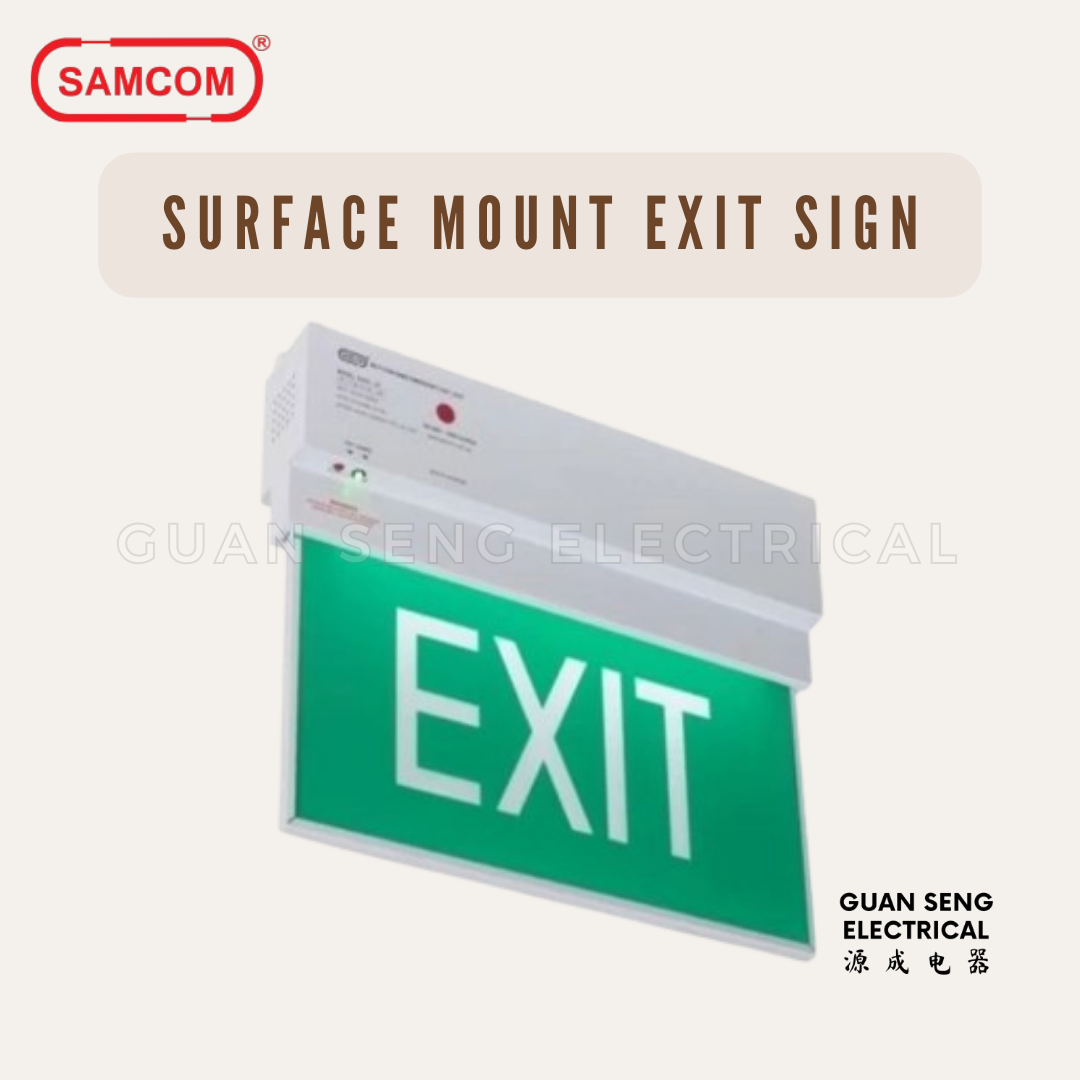

Samcom Electronics Surface Mount Led Slim Exit Sign

Samcom Electronics Surface Mount Led Slim Exit Sign

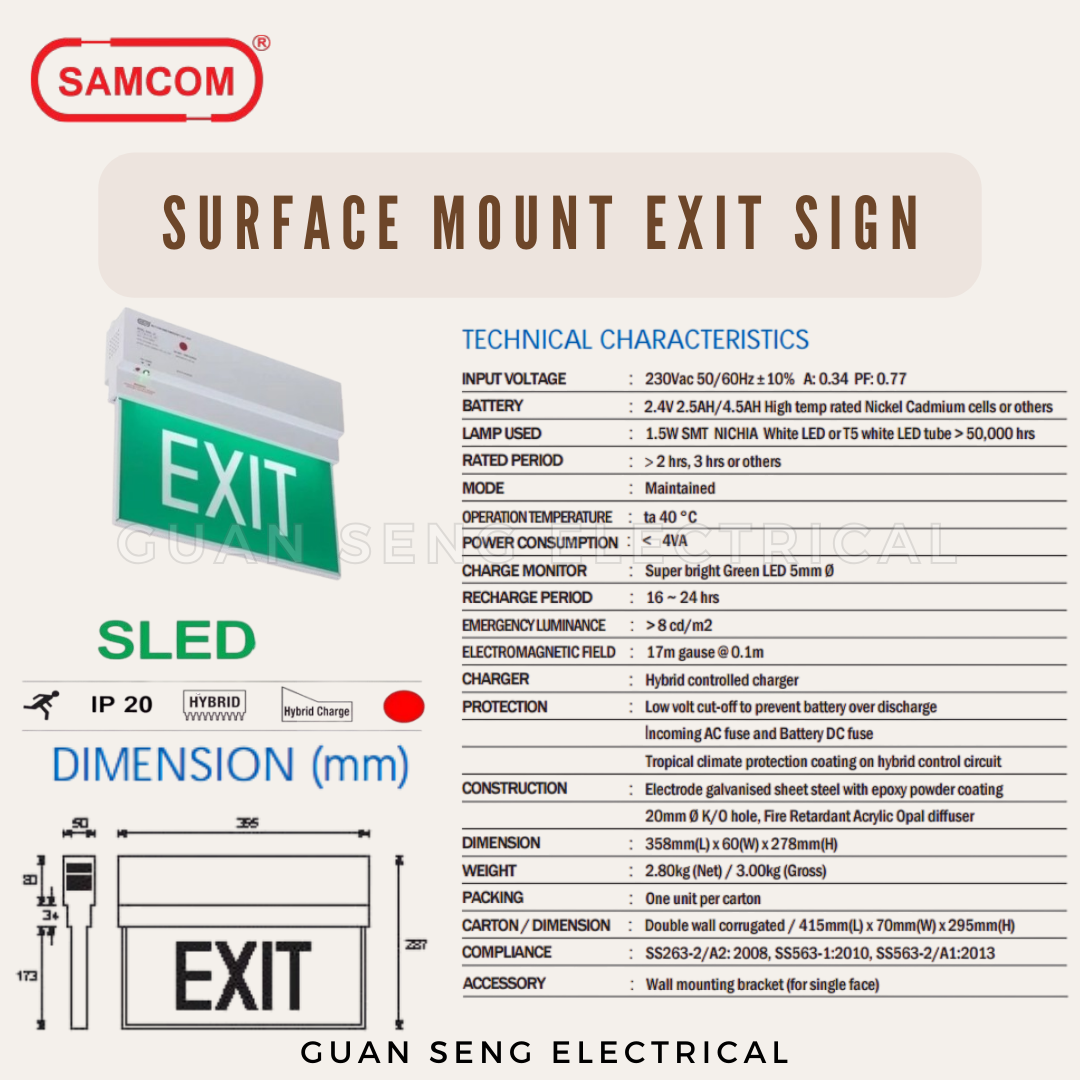

PRODUCT PROPERTY

• Input Voltage: 230Vac 50/60Hz ± 10% A: 0.34 PF: 0.77

• Battery: 2.4V 2.5Ah/4.5Ah High temp rated Nickel Cadmium cells or others

• Lamp Used: 1.5W SMT NICHIA White LED

• Rated Period: > 2 hrs, 3 hrs or others

• Mode: Maintained

• Operation Temperature: ta 40 °C

• Power Consumption: 4.6W

• Change Monitor: Super bright Green LED 5mm Ø

• Recharge Period: 16 ~ 24 hrs

• Emergency Luminance: > 8 cd/m2

• Electromagnetic Field: 17m gause @ 0.1m

• Charger: Hybrid controlled charger

• Protection: Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit

• Construction: Electrode galvanised sheet steel with epoxy powder coating. 20mm Ø K/O hole, Fire Retardant Acrylic Opal diffuser

• Dimension: 358mm(L) x 60mm(W) x 278mm(H)

• Weight: 2.80kg(Net) / 3.00kg(Gross)

• Packing: One unit per carton

• Carton/Dimension: Double wall corrugated / 415mm(L) x 70mm(W) x 295mm(H)

• Compliance:SS563-1:2010, SS563-2:2010/A1:2013 SSIEC 60598:PART 1: 2016
