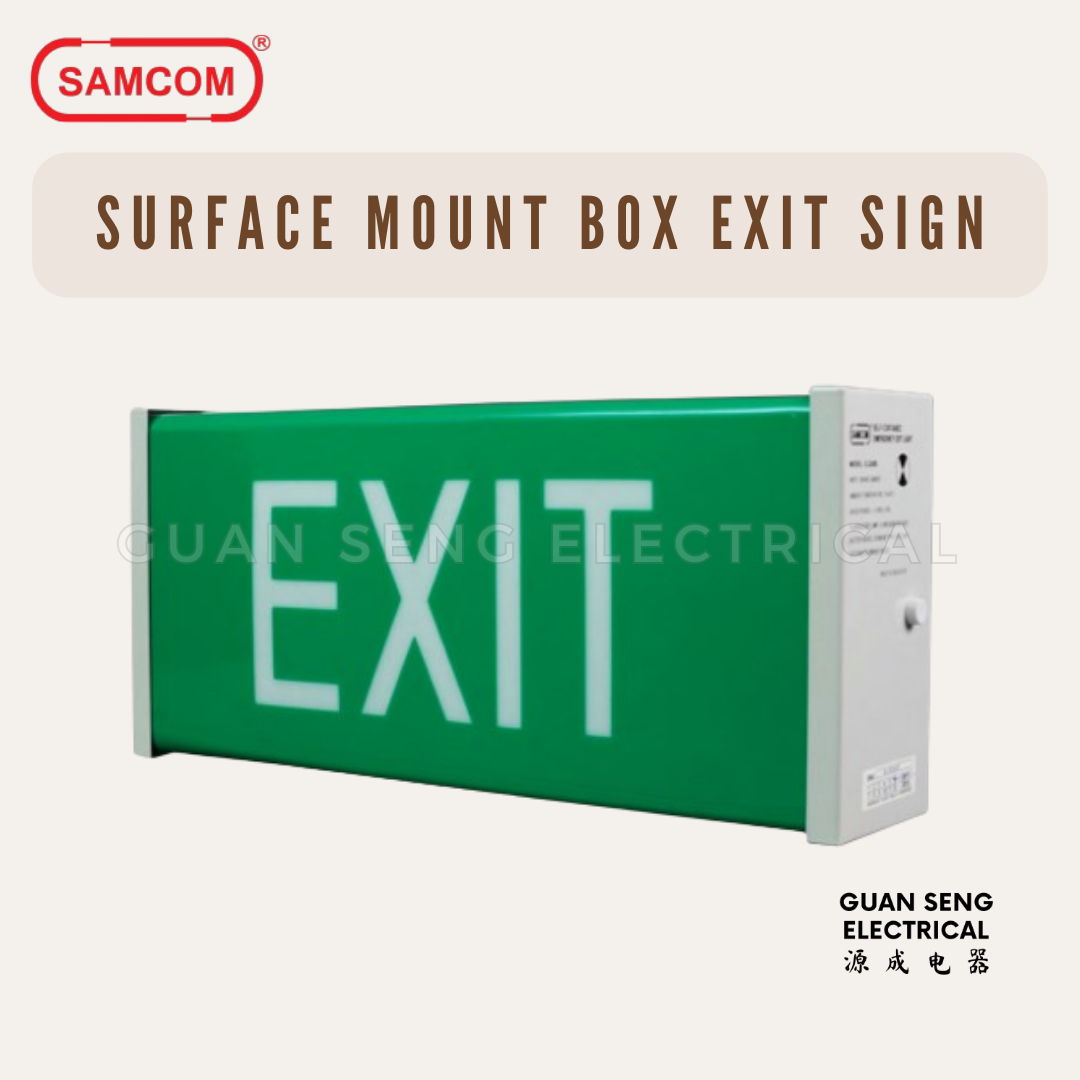

Samcom Electronics Surface Mount LED Exit Sign (Box Type) ELS 115M-LED

Samcom Electronics Surface Mount LED Exit Sign (Box Type)

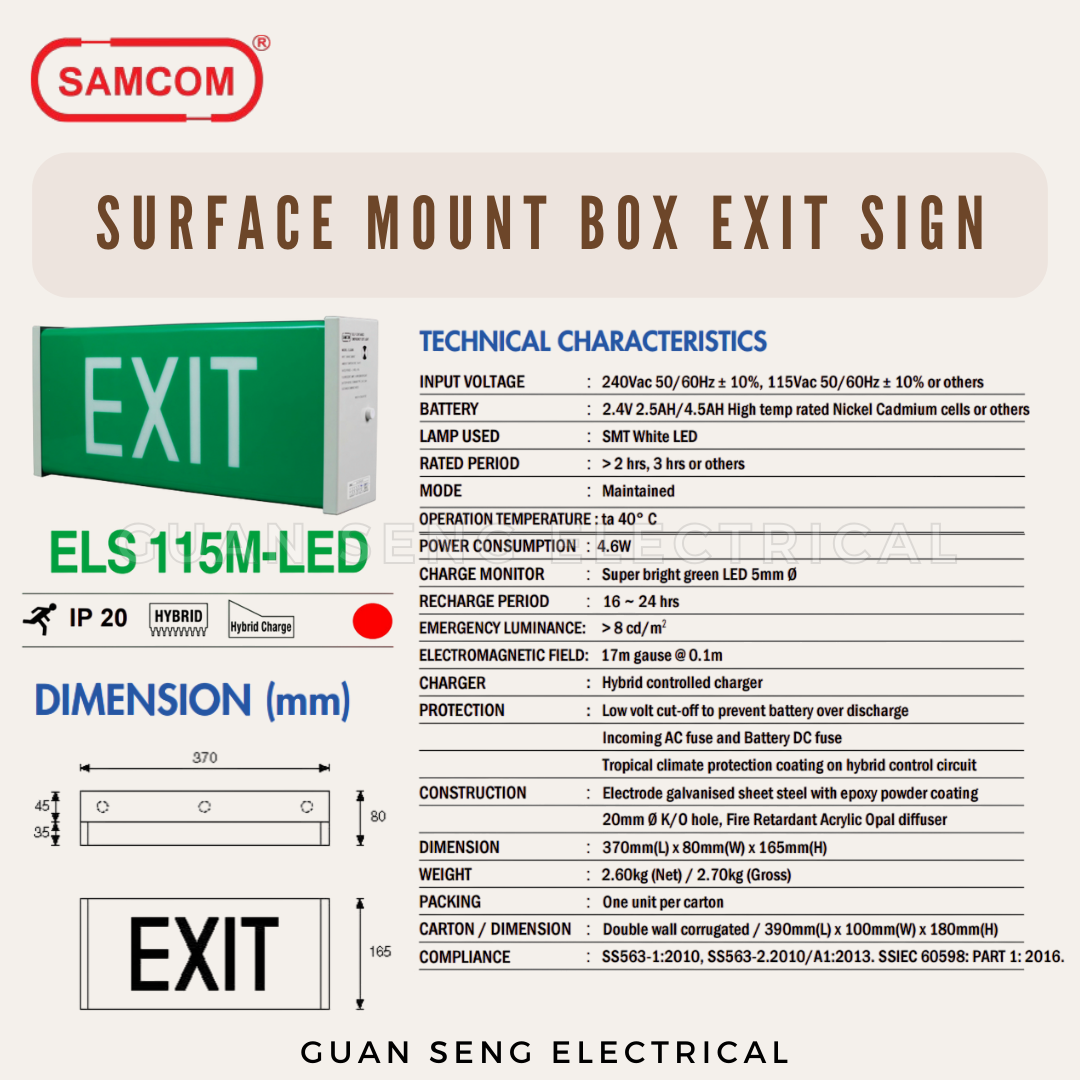

PRODUCT PROPERTY

• Input Voltage: 240Vac 50/60Hz ± 10%, 115Vac 50/60Hz ± 10% or others

• Battery: 2.4V 2.5AH/4.5AH High temp rated Nickel Cadmium cells or others

• Lamp Used: SMT White LED

• Rated Period: > 2 hrs, 3 hrs or others

• Mode: Maintained

• Operation Temperature: ta 40 °C

• Power Consumption: 4.6W

• Charge Monitor: Super bright green LED 5mm Ø

• Recharge Period: 16 ~ 24 hrs

• Emergency Luminance: > 8 cd/m 2

• Electromagnetic Field: 17m gause @ 0.1m

• Charger: Hybrid controlled charger

• Protection: Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit

• Construction: Electrode galvanised sheet steel with epoxy powder coating. 20mm Ø K/O hole, Fire Retardant Acrylic Opal diffuser

• Dimension: 370mm(L) x 80mm(W) x 165mm(H)

• Weight: 2.60kg (Net) / 2.70kg (Gross)

• Packing: One unit per carton

• Carton/Dimension: Double wall corrugated / 390mm(L) x 100mm(W) x 180mm(H)

• Compliance: SS563-1:2010, SS563-2.2010/A1:2013. SSIEC 60598: PART 1: 2016.
