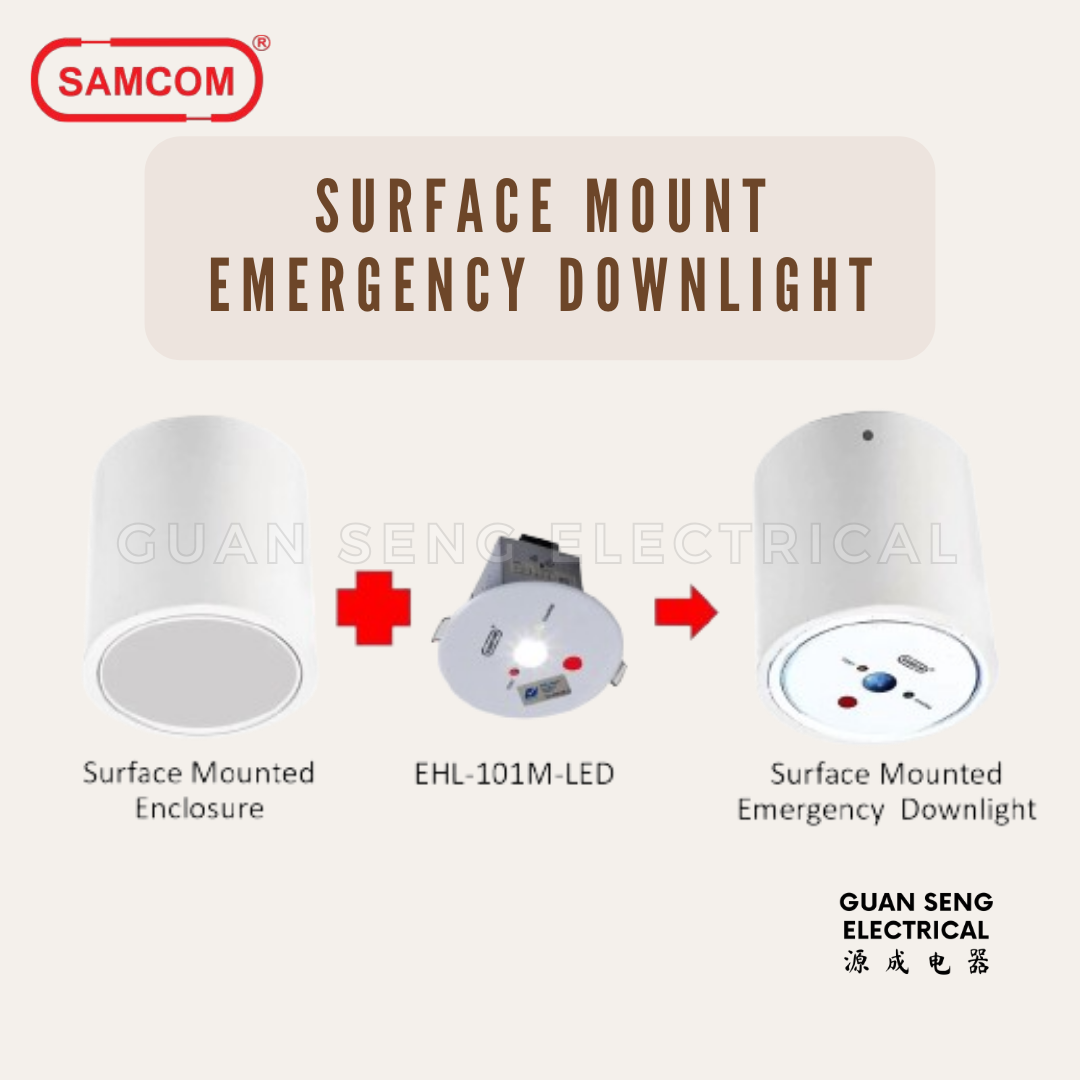

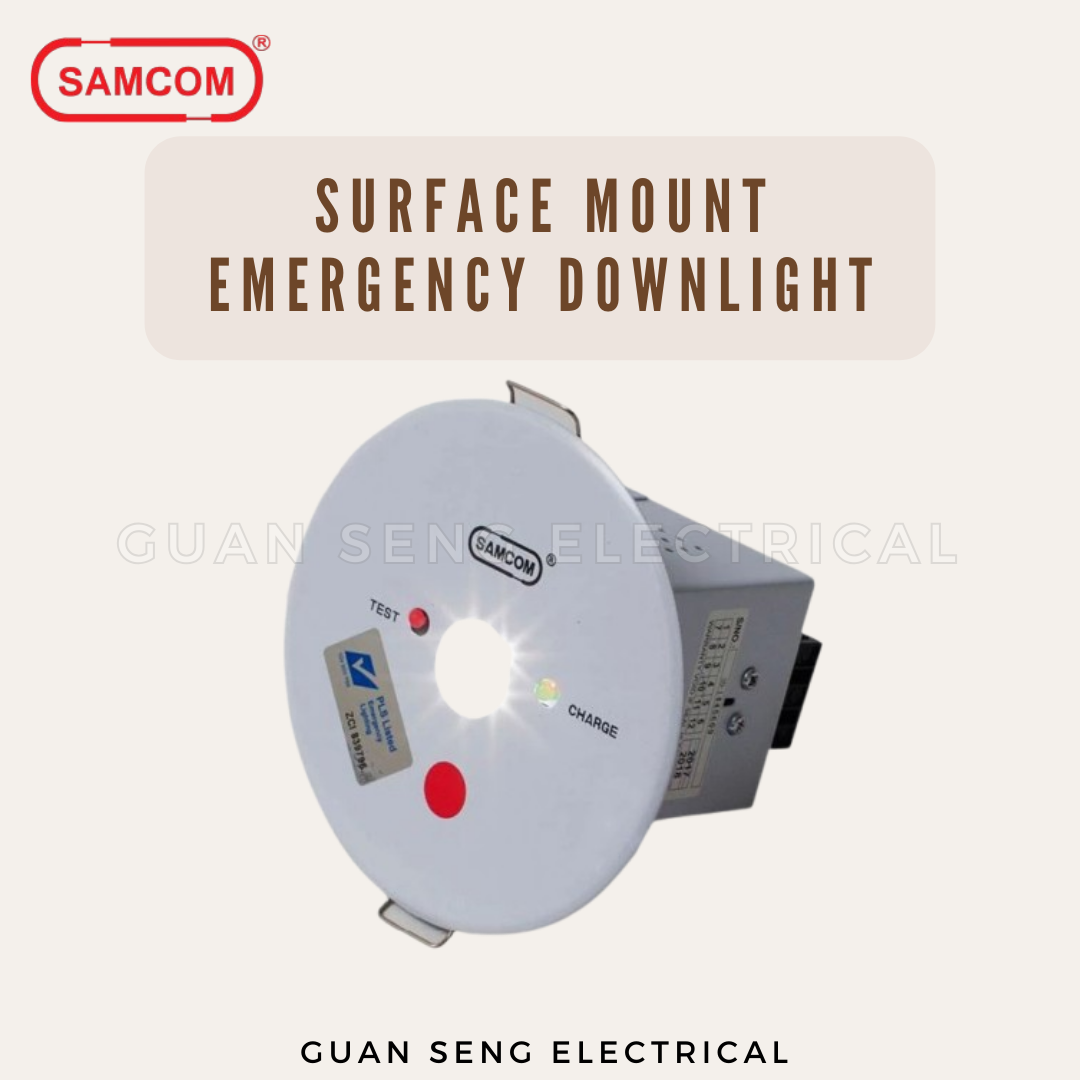

Samcom Electronics Surface Mount Led Down Light EHL-101M-LED + CLD

Samcom Electronics Surface Mount Led Down Light EHL-101M-LED + CLD

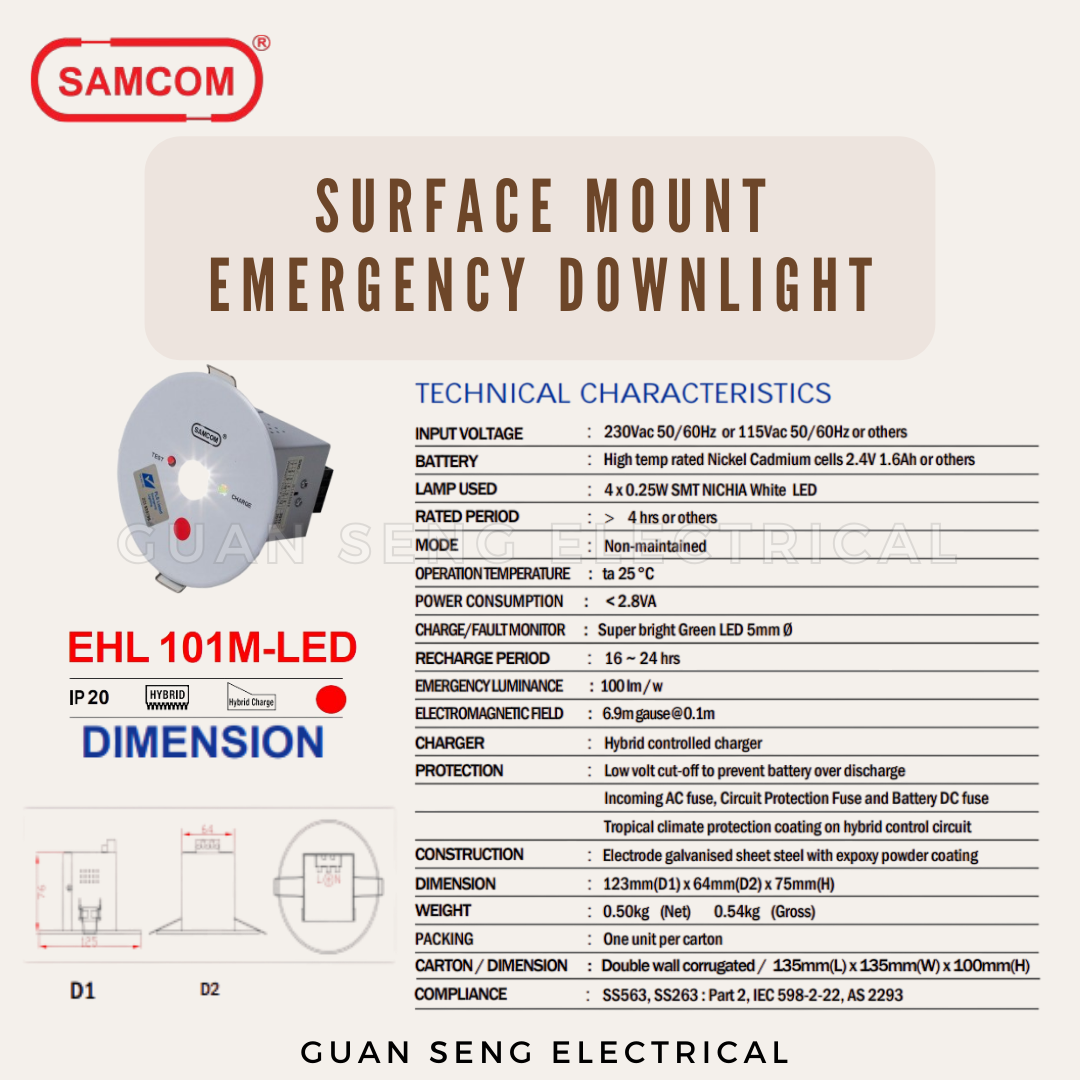

PRODUCT PROPERTY

• Input Voltage: 230Vac 50/60Hz or 115Vac 50/60Hz.

• Battery: High temp rated Nickel Cadmium cells 2.4V 1.6Ah or others

• Lamp Used: 4 x 0.25W SMT NICHIA White LED (1.5W)

• Rated Period: > 3 hrs or others

• Mode: Non-maintained

• Operation Temperature: ta 25 °C

• Power Consumption: < 2.8VA

• Signal Led Monitor: Super bright Green LED 5mm Ø

• Recharge Period: 16 ~ 24 hrs

• Electromagnetic Field: 6.9m gause @ 0.1m

• Charger: Hybrid controlled charger

• Protection:

- Low volt cut-off to prevent battery over discharge.

- Incoming AC fuse, Circuit Protection Fuse and Battery DC fuse.

- Tropical climate protection coating on a hybrid control circuit

• Construction: Electrode galvanized sheet steel with epoxy powder coating

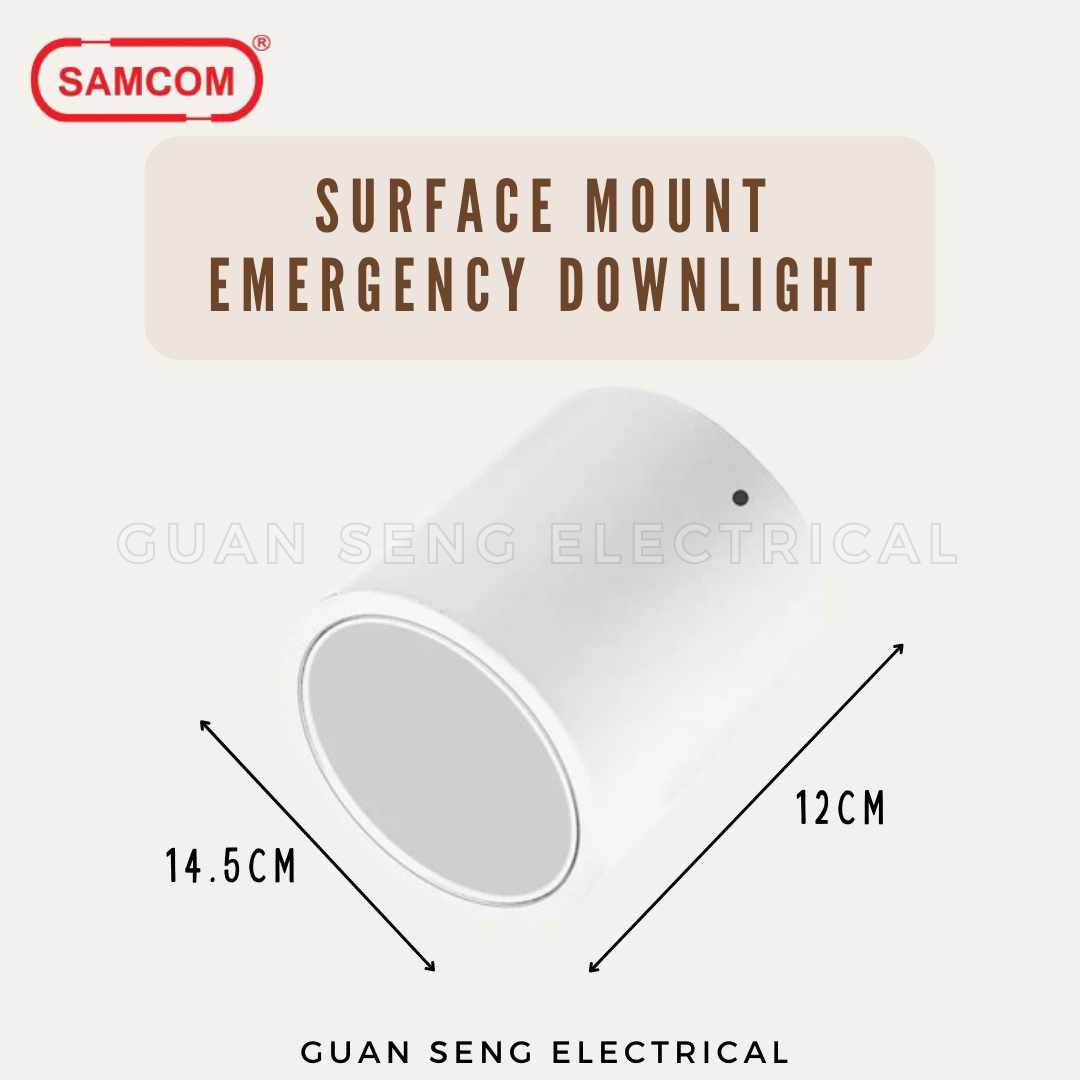

• Dimension: 123mm(D1) x 64mm(D2) x 75mm(H)

• Weight: 0.50kg (Net) 0.54kg (Gross)

• Packing: One unit per carton

• Carton/Dimension: Double wall corrugated / 120mm(L) x 120mm(W) x 185mm(H)

• Compliance: SS563-1:2010 TUV PSB approval product.
