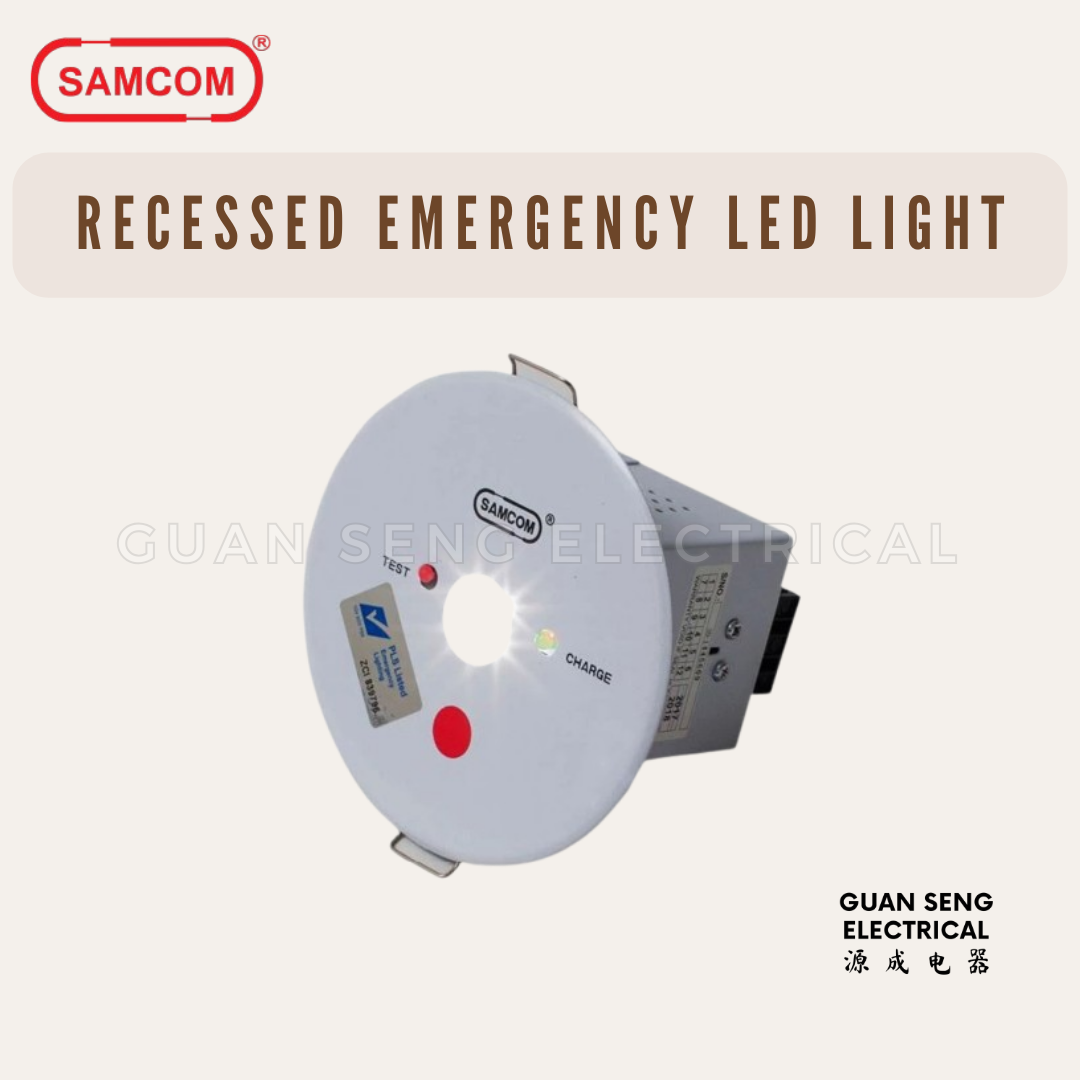

Samcom Electronics Recessed Emergency Led Light EHL 101M-LED

Samcom Electronics Recessed Emergency Led Light EHL 101M-LED

PRODUCT PROPERTY

• Input Voltage: 230Vac 50/60Hz

• Battery: High temp rated Nickel Cadmium cells 2.4V 1.6Ah or others

• Lamp Used: 4 x 0.25W SMT NICHIA White LED (0.25w) >100lm/m2

• Rated Period: > 5 hrs or others

• Mode: Non-maintained

• Operation Temperature: ta 40°C

• Power Consumption: < 1.3W 2.8VA

• Signal Led Monitor: Super bright Green LED

• Recharge Period (Min: 16 ~ 24 hrs

• Electromagnetic Field: 6.9m gause @ 0.1m

• Charger: Hybrid controlled charger

• Protection: Low volt cut-off to prevent battery over discharge. Incoming AC fuse, Circuit Protection Fuse and Battery DC fuse. Tropical climate protection coating on a hybrid control circuit

• Construction: Electrode galvanized sheet steel with epoxy powder coating

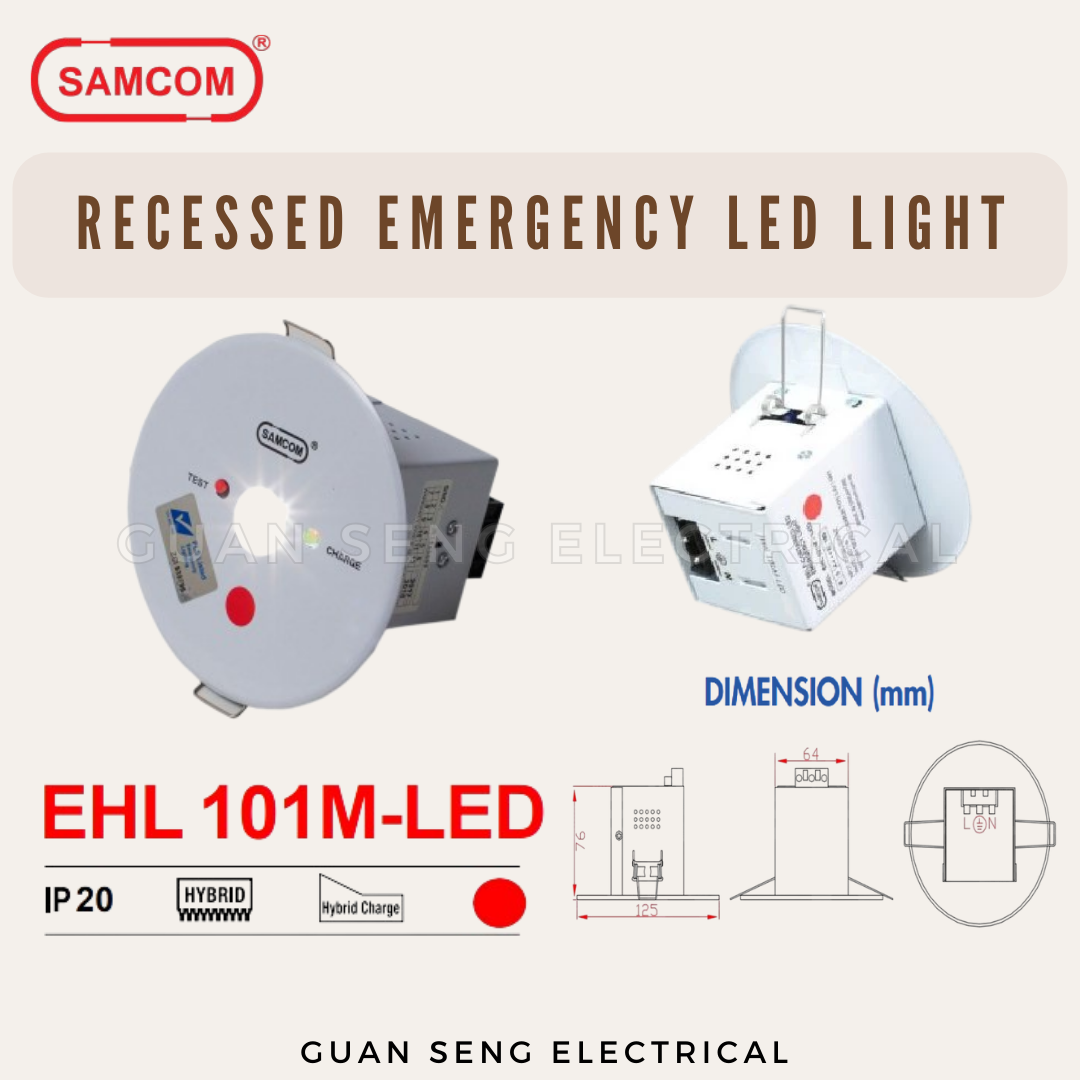

• Dimension: 123mm(D1) x 64mm(D2) x 75mm(H)

• Weight: 0.50kg (Net) 0.54kg (Gross)

• Packing: One unit per carton

• Carton/Dimension: Double wall corrugated / 135mm(L) x 135mm(W) x 120mm(H)

• Compliance: SS563 TUV PSB Singapore approval product.
