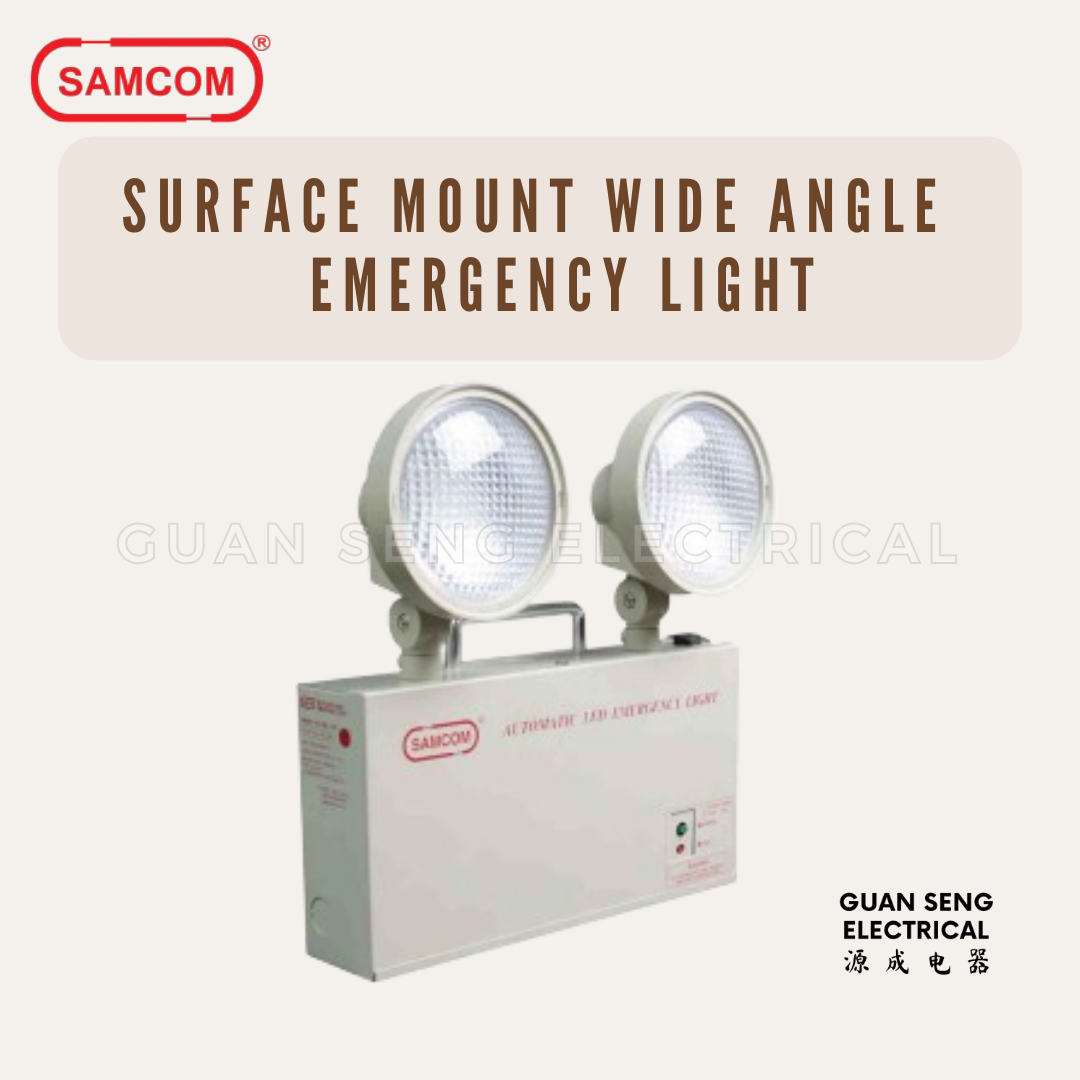

Samcom Electronics LED Surface Mount Wide Angle Emergency Light ETL 208-LED

Samcom Electronics LED Surface Mount Wide Angle Emergency Light

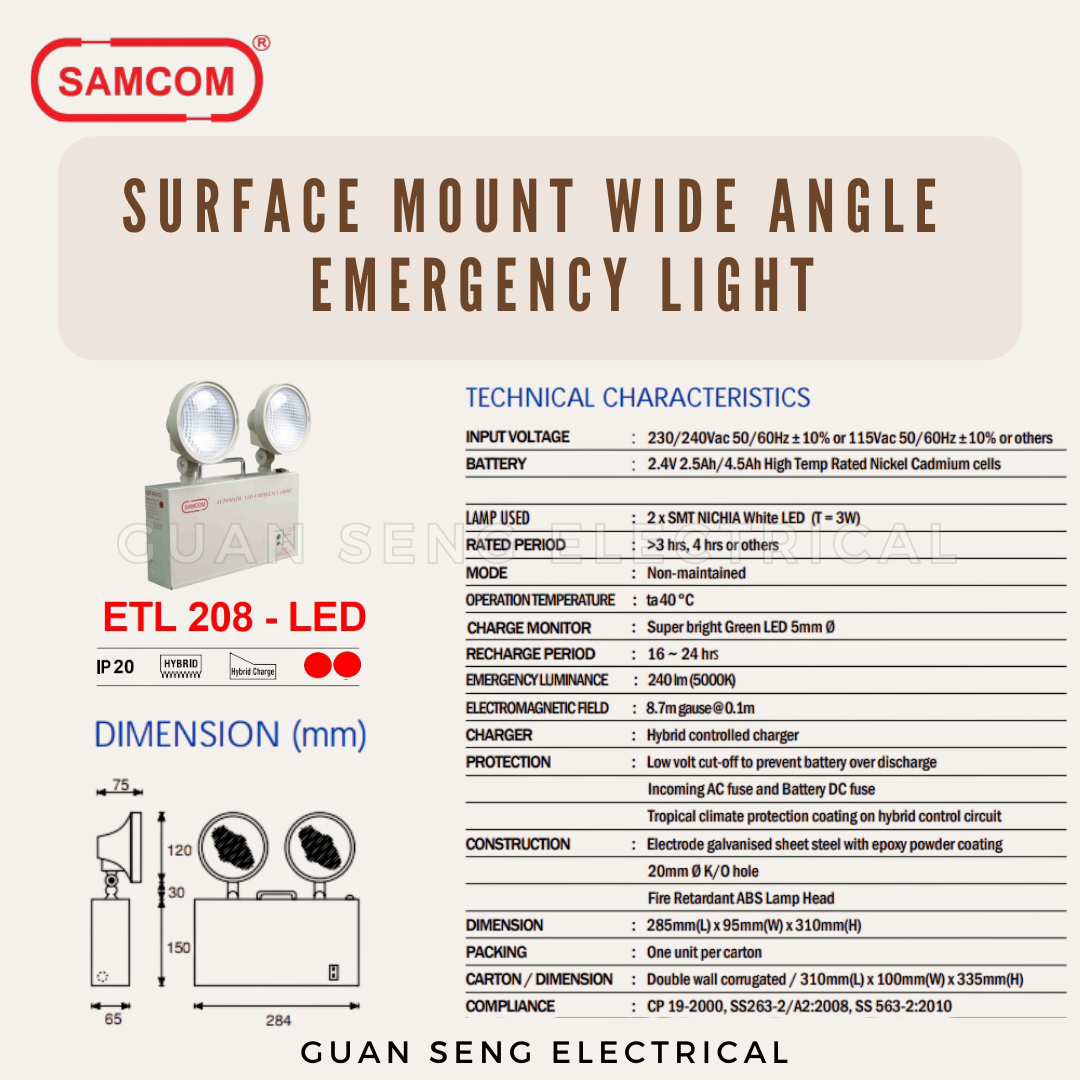

PRODUCT PROPERTY

• Input Voltage: 230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others

• Battery: 2.4V 2.5Ah/4.5Ah High temp rated Nickel Cadmium cells or others

• Lamp Used: 2 x SMT NICHIA White LED (T=3W)

• Rated Period: > 3 hrs, 4 hrs ± 10% or others

• Mode: Non-Maintained

• Operation Temperature: ta 40 °C

• Power Consumption: < 1.4W

• Charge Monitor: Super bright green LED 5mm Ø

• Recharge Period: 16 ~ 24 hrs

• Emergency Luminance: 240 lm (5000K

• Electromagnetic Field: 8.7m gause @ 0.1m

• Charger: Hybrid controlled charger

• Protection:

- Low volt cut-off to prevent battery over discharge.

- Incoming AC fuse and Battery DC fuse.

- Tropical climate protection coating on hybrid circuit

• Construction:

- Electrode galvanised sheet steel with epoxy powder coating

- 20mm Ø K/O hole. Fire retardant ABS lamp head

• Dimension: 285mm(L) x 95mm(W) x 310mm(H)

• Packing: One unit per carton

• Weight: 1.9kg (Net) / 2.0kg (Gross)

• Packing: One unit per carton

• Carton/Dimension: Double wall corrugated / 310mm(L) x 100mm(W) x 335mm(H)

• Compliance: SS563-1:2000, SS563-2,2010/A1-2013, SSIEC60598-2-22:2016, SSIEC60598:Part 1:2016
