Samcom Electronics LED Surface Mount Wide Angle Emergency Light ETL 201P-LED

Samcom Electronics LED Surface Mount Wide Angle Emergency Light

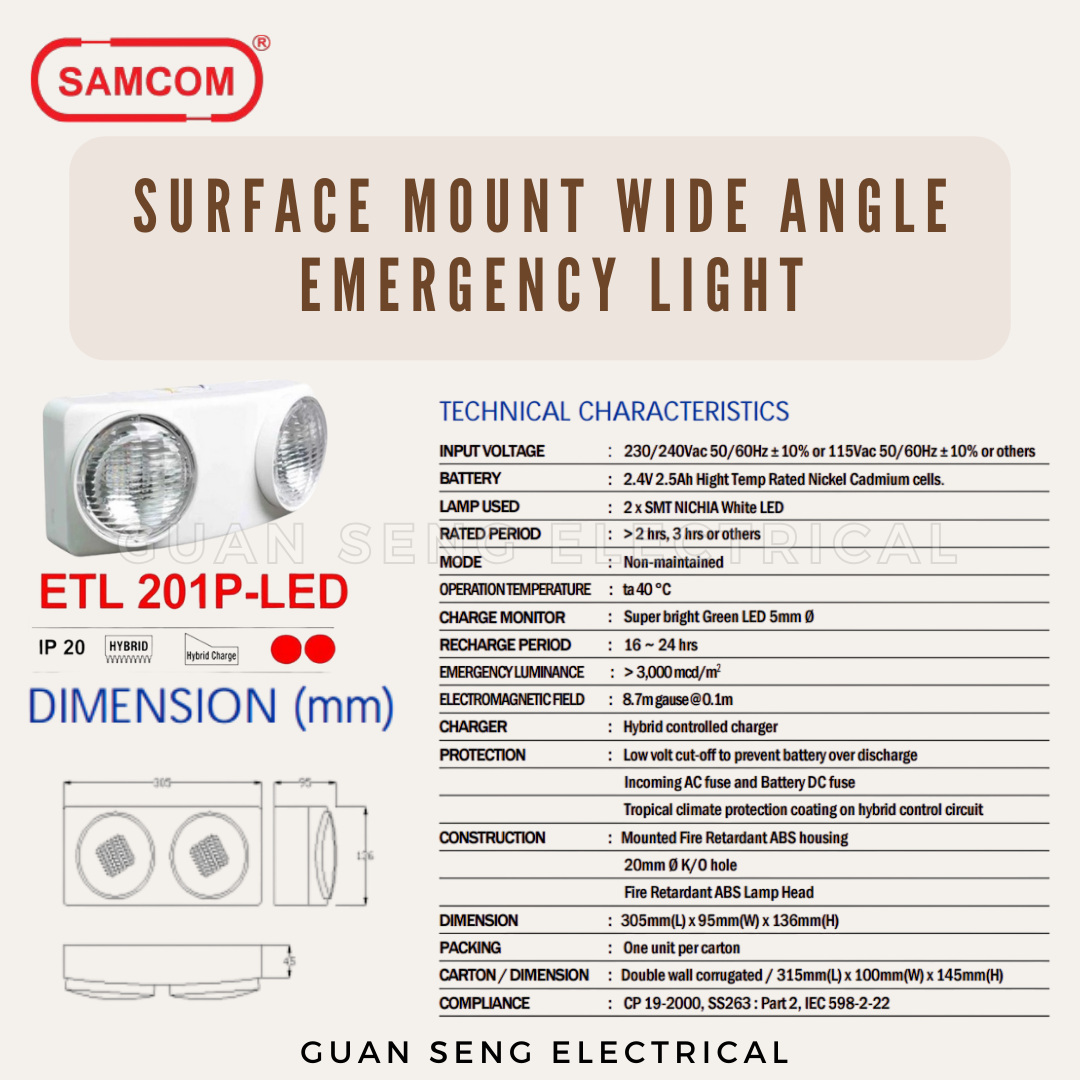

PRODUCT PROPERTY

• Input Voltage: 230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others

• Battery: 2.4V 2.5Ah/4.5Ah High temp rated Nickel Cadmium cells or others

• Lamp Used: 2 x SMT NICHIA White LED

• Rated Period: > 2 hrs, 3 hrs ± or others

• Mode: Non-Maintained

• Operation Temperature: ta 40 °C

• Power Consumption: < 1.4W

• Charge Monitor: Super bright green LED 5mm Ø

• Recharge Period: 16 ~ 24 hrs

• Emergency Luminance: 88 lm

• Electromagnetic Field: 8.7m gause @ 0.1m

• Charger: Hybrid controlled charger

• Protection: Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid circuit

• Construction: Mounted Fire Retardant ABS housing  20mm Ø K/O hole. Fire retardant ABS lamp head

• Dimension: 305mm(L) x 95mm(W) x 136mm(H)

• Packing: One unit per carton

• Weight: 1.9kg (Net) / 2.0kg (Gross)

• Carton/Dimension: Double wall corrugated / 315mm(L) x 100mm(W) x 145mm(H)

• Compliance: SS563-1:2000, SS563-2,2010/A1-2013, SSIEC60598-2-22:2016, SSIEC60598:Part 1:2016
