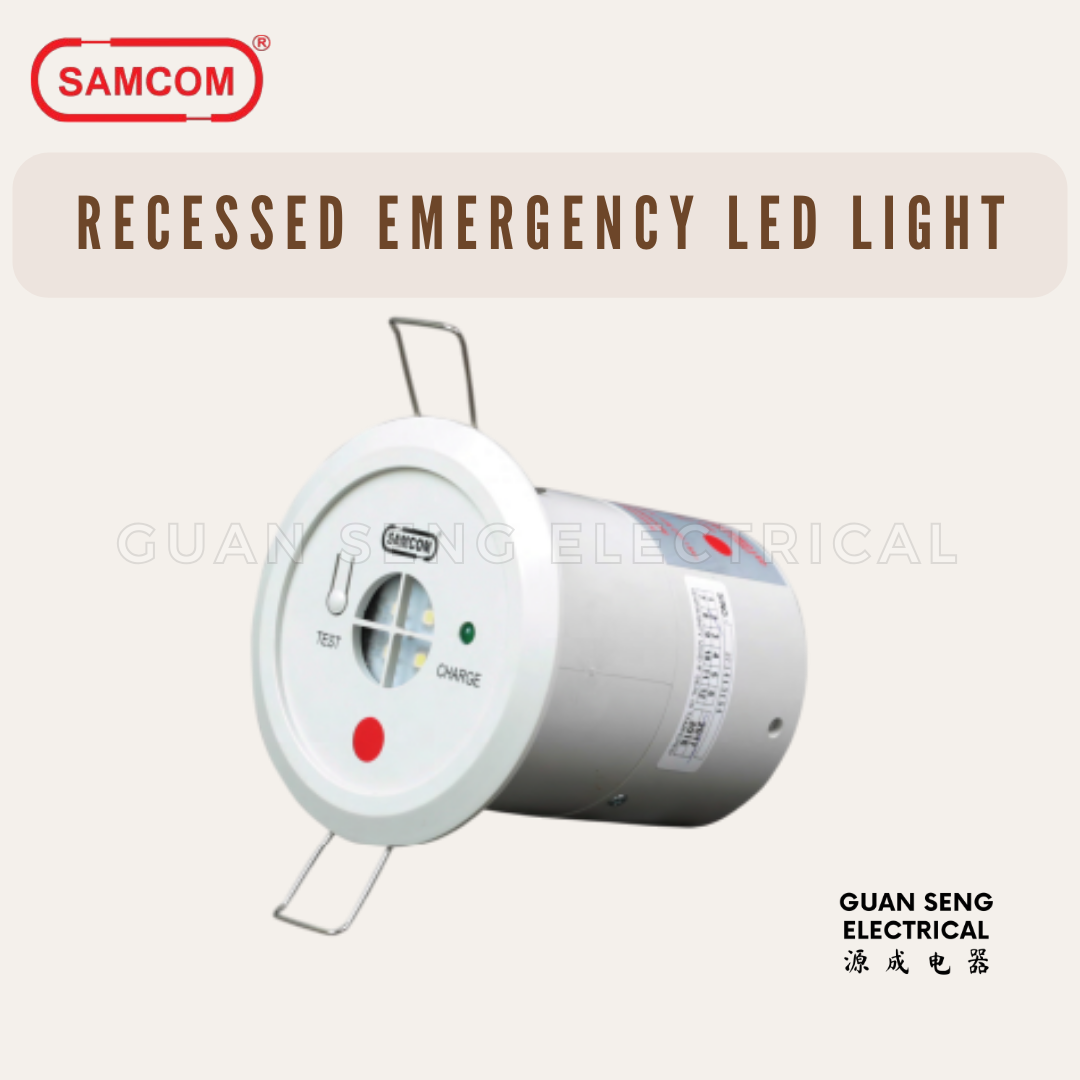

Samcom Electronics Emergency Light Recessed Led Down Light EHL 101-LED

Samcom Electronics Emergency Light Recessed Led Down Light EHL 101-LED

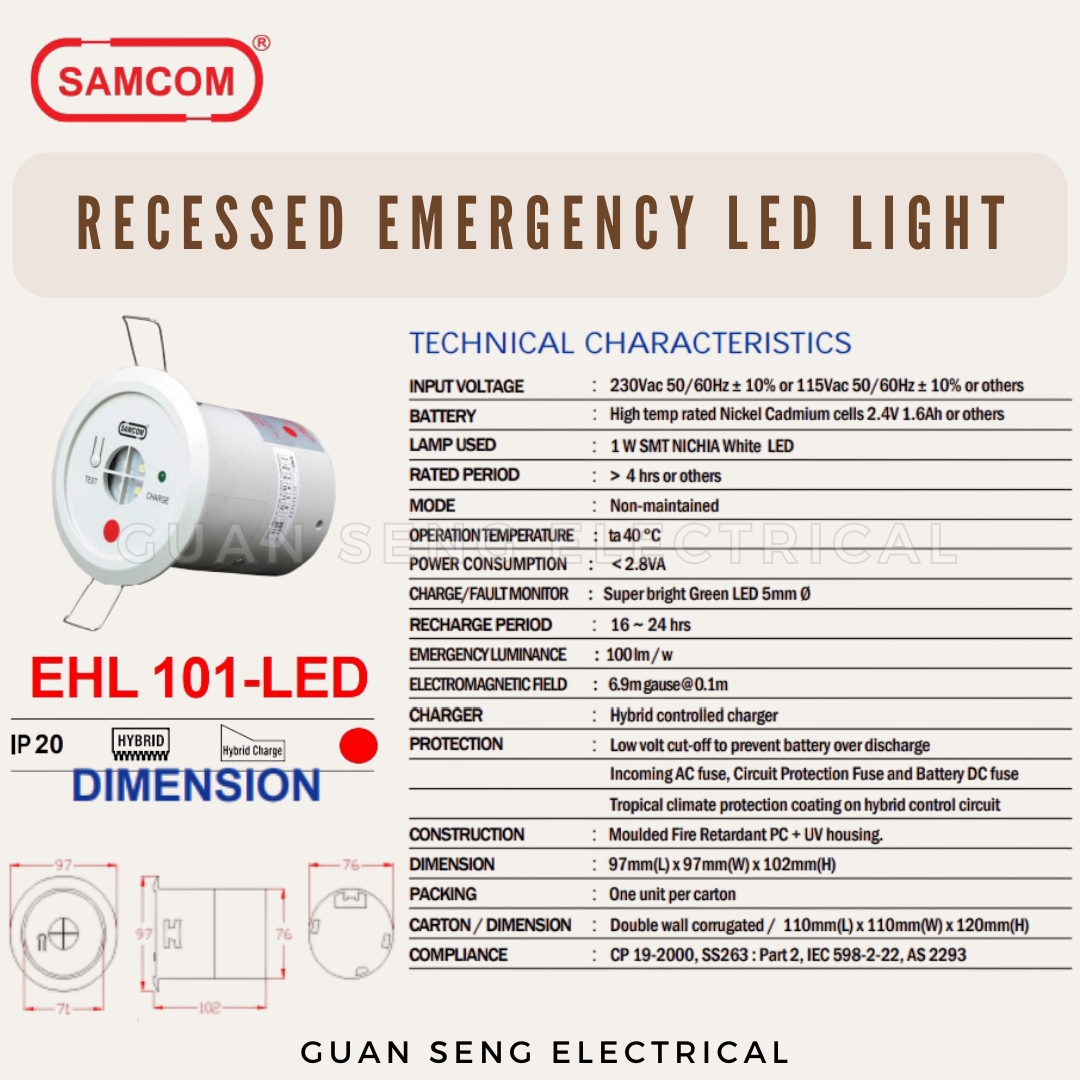

PRODUCT PROPERTY

• Input Voltage: 230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others

• Battery: High temp rated Nickel Cadmium cells 2.4V 1.6Ah or others

• Lamp Used: 1 W SMT NICHIA White LED

• Rated Period: > 4 hrs or others

• Mode: Non-Maintained

• Operation Temperature: ta 40 °C

• Power Consumption: < 2.8VA

• Charge Monitor: Super bright Green LED 5mm Ø

• Recharge Period: 16 ~ 24 hrs

• Emergency Luminance: 100 lm / w

• Electromagnetic Field: 6.9m gause @ 0.1m

• Charger: Hybrid controlled charger

• Protection:

- Low volt cut-off to prevent battery over discharge.

- Incoming AC fuse, Circuit Protection Fuse and Battery DC fuse

- Tropical climate protection coating on hybrid circuit

• Construction: Moulded Fire Retardant PC + UV housing

• Dimension: 97mm(L) x 97mm(W) x 102mm(H)

• Packing: One unit per carton

• Weight: 1.9kg (Net) / 2.0kg (Gross)

• Packing: One unit per carton

• Carton/Dimension: Double wall corrugated / 110mm(L) x 110mm(W) x 120mm(H)

• Compliance: CP 19-2000, SS263 : Part 2, IEC 598-2-22, AS 2293
